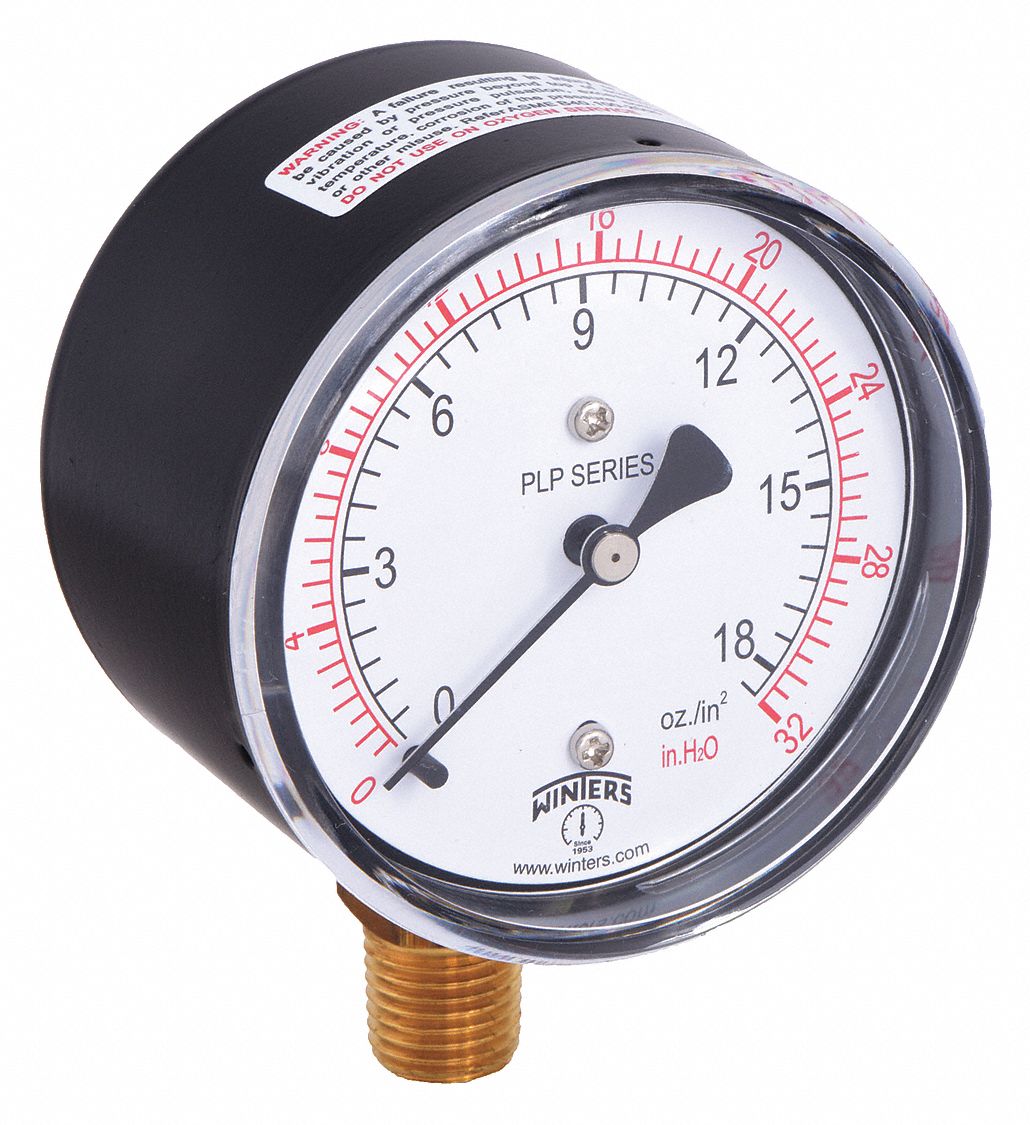

Low Pressure Gauge: For Natural Gas & Other Gases, 0 in wc to 32 in wc, 2 1/2 in Dial, PLP
In Stock
$91.45
Save 20%
$72.78
/each
Earn 72 points for this item
($0.72 for your next purchase!)
REGISTER NOW TO EARN!
ETA 5-7 BUSINESS DAYS
Request quantity discount pricing
You're Viewing
WINTERS Low Pressure Gauge: For Natural Gas & Other G...
Mfr # PLP301
$72.78
Customers Also Viewed
No related products found.
Product Details
| Catalog Page | 544 |
| Brand | WINTERS |
| IP Rating | IP52 |
| Liquid-Filled Case | No |
| Accuracy Grade | ASME B40.100 Grade B |
| Case Depth | 1.9 in |
| Standards | CRN |
| Dry Dampening Feature | None |
| Case Color | Black |
| Includes Vent Plug | No |
| Contains California Prop 65 Carcinogen | Y |
| Secondary Scale Pressure Measurement - Minimum | 0 oz/sq in |
| Includes California Prop 65 Short-Form Warning | Y |
| Process Media Temperature - Minimum | -40 Degrees F |
| Scale Type | Dual |
| Ozone Depleting Substance | N |
| Process Connection Size | 1/4 in |
| Bezel Mounting Type | No Bezel |
| Primary Scale Pressure Measurement - Minimum | 0 in wc |
| Case Finish | Painted |
| Freeze Resistant Movement | No |
| Is this a Hazardous Material Product? | N |
| Gauge Case Liquid | None |
| Manufacturer Part Number | PLP301 |
| Sensor Type | Diaphragm |
| Primary Scale Pressure Measurement - Maximum | 32 in wc |
| Accuracy | +/-3-2-3% |
| Series | PLP |
| Pressure Range | 0 in wc to 32 in wc |
| Safety Data Sheet (SDS) Applicable? | N |
| Wetted Parts Material | Brass Bronze |
| Process Connection Type | NPT |
| Should Sales be Restricted by Region? | N |
| Pointer Material | Aluminum |
| Product Powered by Fossil Fuel | N |
| Nominal Dial Size | 2-1/2 in |
| Dial Color | White |
| RoHS - Restricted Use of Hazardous Substances Directive (RoHS) | N |
| Over-Pressure Limit | 30% of Full Scale |
| Process Connection Location | Bottom |
| Panel-Mountable | No |
| Contains California Prop 65 Reproductive Toxicant | Y |
| Lens Material - Gauge | Plastic |
| NEMA Enclosure Rating | 5 |
| Dial Face Material | Aluminum |
| Prop65_WarningMessage | Compliance_Prop65_Short_CancerandRepro |
| Lens Material | Polycarbonate |
| Case Material - Gauge | Steel |
| Secondary Scale Pressure Measurement - Maximum | 18.5 oz/sq in |
| Process Connection | 1/4 in NPT Male |
| Freight Class Code | 43 |
| Case Diameter | 2.625 in |
| Includes Mounting Hardware | No |
| Storage Protection Code | A |
| Mounting Type | Stem-Mount |
| Removable Bezel | No |
| Cleaned for Oxygen Service | No |
| Gauge Application | For Natural Gas & Other Gases |
| Gauge Wetted Parts | Brass / Bronze |
| Operating Temperature - Maximum | 150 Degrees F |
| Operating Temperature - Minimum | -40 Degrees F |
| Process Media Temperature - Maximum | 150 Degrees F |
| Field Fillable | No |
| Sensor Material | Bronze |
| Primary Scale Units | in wc |
| Gauge Accuracy Grade | Grade B - Commercial |
| Pressure Range Type | Pressure |
| Process Connection Gender | Male |
| Includes Calibration Certificate | No |
| Pressure Gauge Type | Low Pressure Gauge |
| Socket Material | Brass |
| EnvironmentallyPreferable_Indicator | N |
| Gauge Case Material | Steel |
| Manufacturer Warranty Length | 5 yr |
| Mfr. Model # | PLP301 |
Description
Low Pressure Gauge, +/-3-2-3%, Black
